Mobility Scooter Carrier

VH-MS

Features	What's Included	Specifications

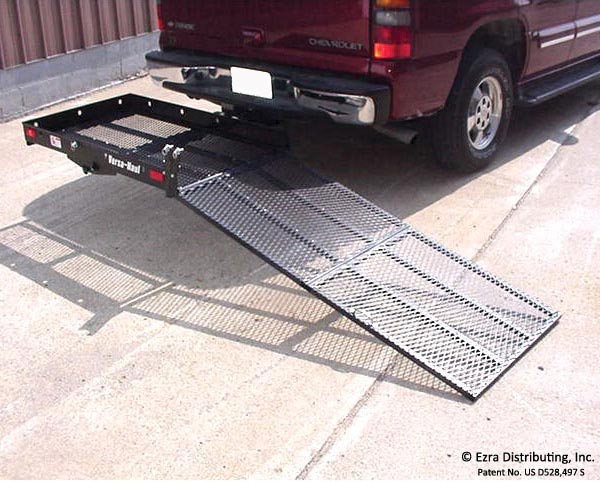

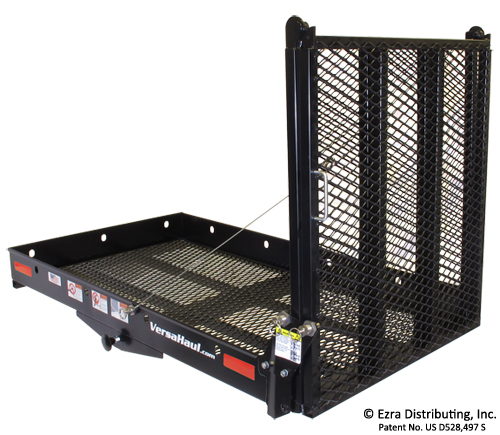

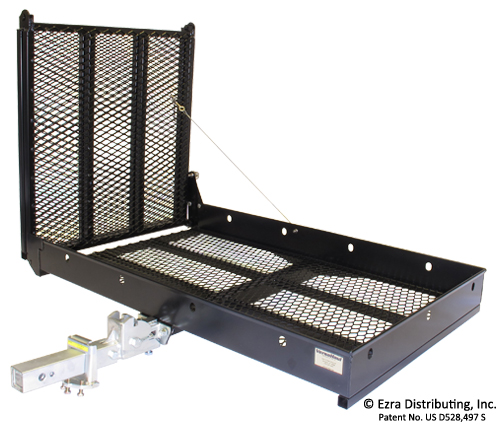

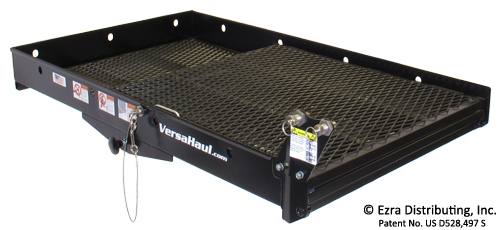

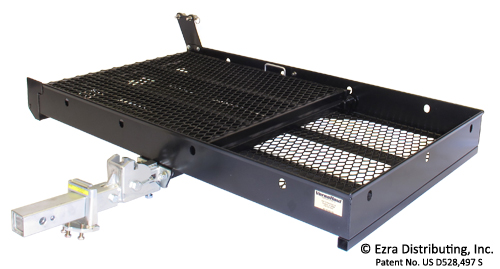

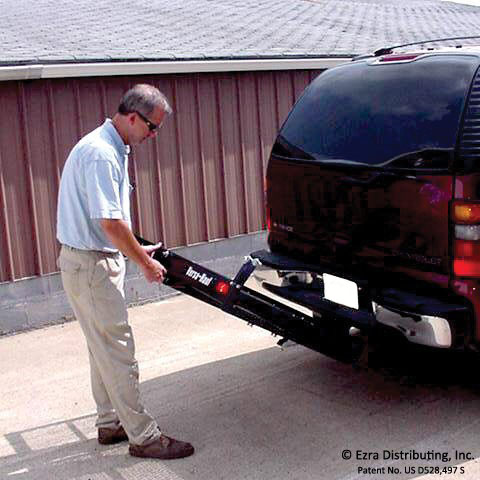

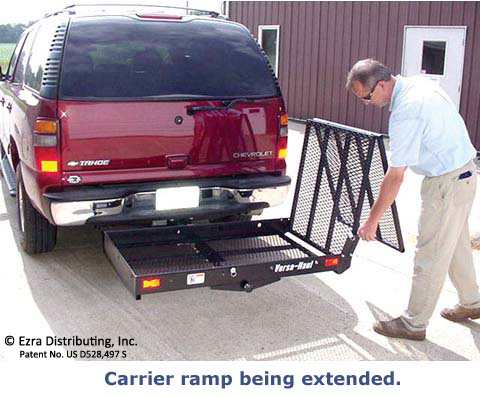

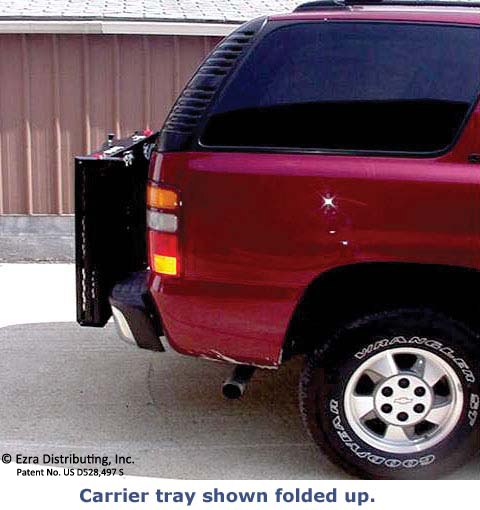

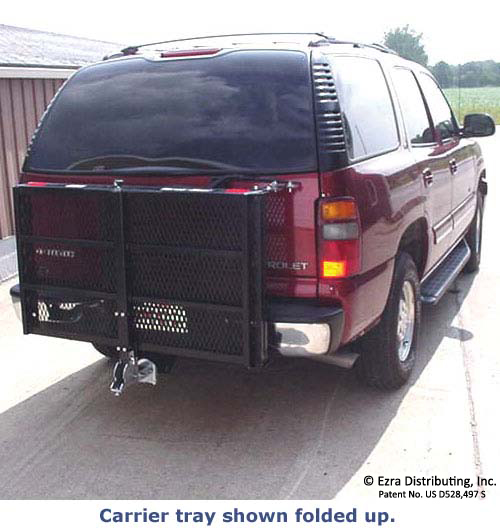

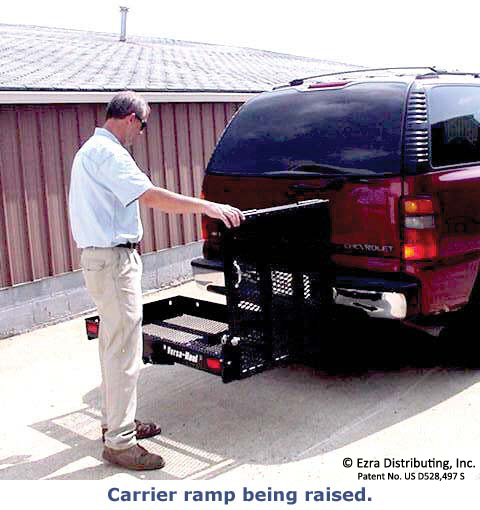

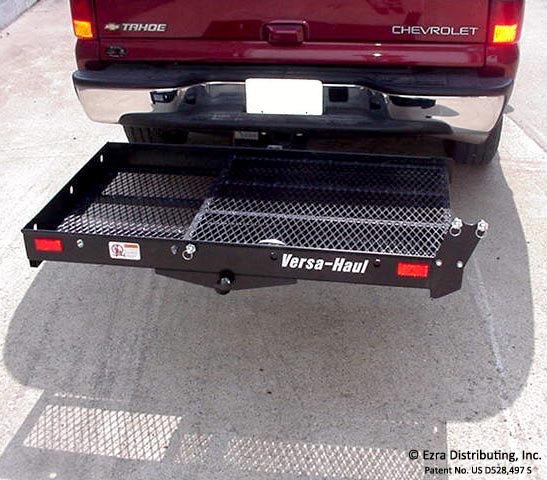

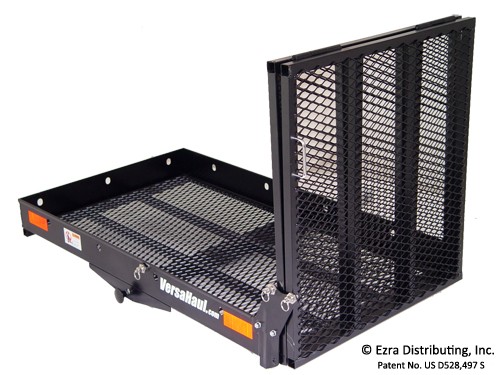

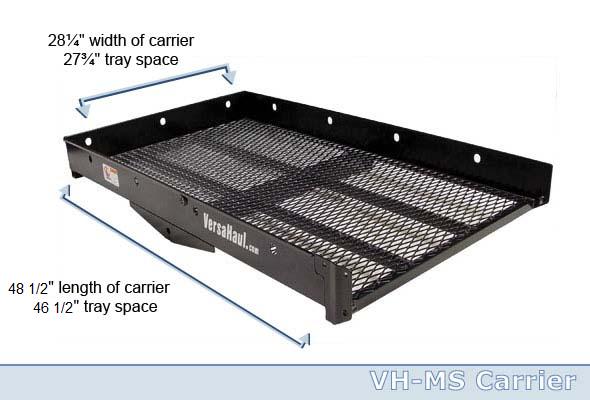

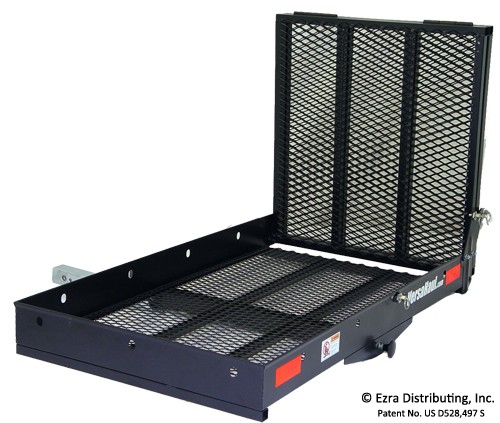

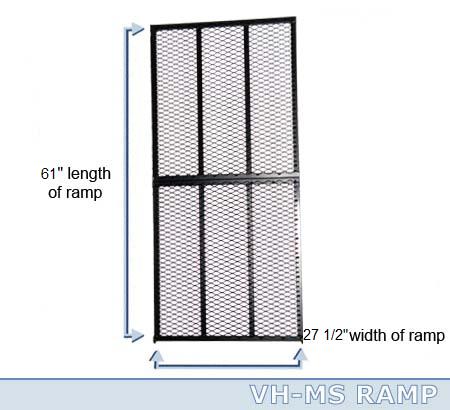

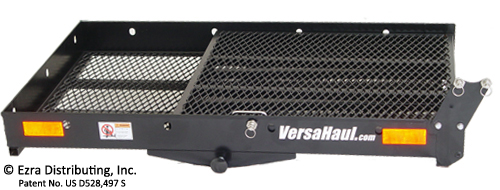

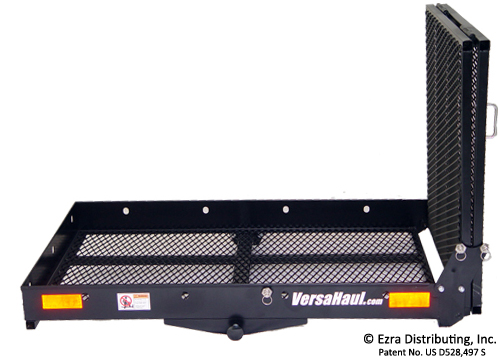

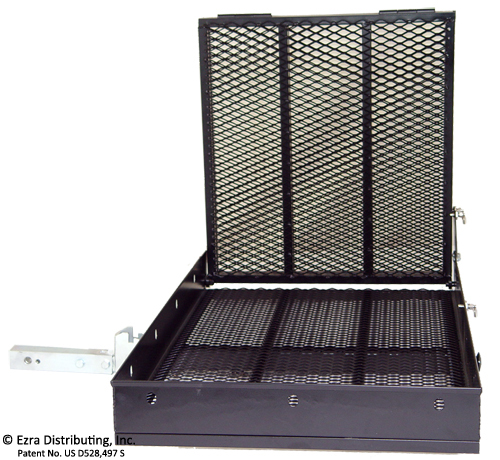

61 in. center folding ramp Ramp easily lock into a folded upright position with spring pull locks Ramp folds into a flat position when not in use Ramp can be removed Carrier tilts up when not in use. Carrier comes standard with both class II and class III hitch inserts. 14 slots for tie down hooks Tough powder coat finish Tray has a 46.5 in. x 27.75 in. of carrying area	Anti-tilt locking device Carrier tray Center folding ramp Ramp bracket Class II stinger (1-1/4 in) Class III stinger sleeve (2 in) Safety Lanyard	Dimensions Model Number: VH-MS Description: Mobility Scooter carrier Approx. Shipping Wt.: 115 lbs. Carrying Capacity Unit: 500 lbs. Length of carrier tray: 46.5 in. Width of carrier tray: 27.75 in. Height of carrier tray: 4 in. Length of ramp: 61 in. Width of ramp: 27.5 in. Instruction Booklet Lanyard Instructions Reverse Lock Bracket Instructions Alternative Lock Bracket Instructions

Carrier	Hitch	Vehicle
The VH-MS carrier is designed to safely carry 500 lbs.	Most Class III hitches are rated for 500 lbs. Most Class IV hitches are rated for 1000 lbs. Low Hitch: The VersaHaul main tube extends out of the hitch at the same level. Hitches low to the ground will not work properly. Recessed Hitches will prevent the carrier tray from folding vertically. For Solutions see our Risers and Extenders on the accessories page.	Your hauling weight may be limited by your vehicle's capacity to carry a load. Click here to find the Carrying Capacity of your vehicle.
